HC Series: HC Series

Item # HC Series

HC Series 30 Amp
Specifications

Type:

Hot Control - Auto Reset - High Current

Function:

Open On Rise (Normally Closed)

Switch:

SPST

Set Point:

Adjustable

Temp Range:

-40F to 752F (-40C to 400C)

Differential:

Specify

Bulb Diameter:

Specify

Bulb Material:

Copper or Stainless Steel

Capillary Length:

Specify

Accessories:

Dials, knobs, plates, bezels, screws, mounting stuffing boxes, compression fittings M9, M10, 3/8", 1/4", 1/8" & reducer bushings

Electrical Rating:

120/250VAC, 30Amps, Resistive, 100,000 cycles
250VAC,2.9FLA/30LRA, Inductive, 100,000 cycles

Approvals:

UL, C-UL, ENEC, ROHS
UL file no. E168164, XAPX2, XAPX8

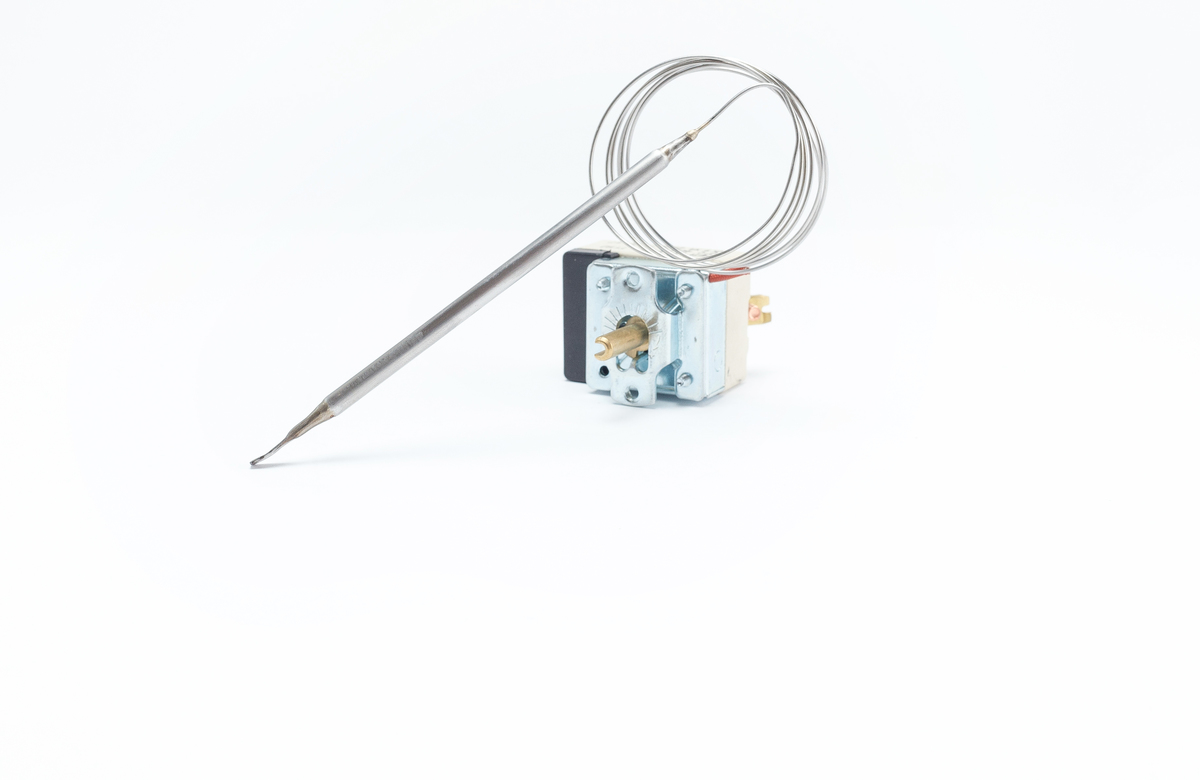

The bulb and capillary thermostats are adjustable or fixed setting, automatic reset thermostats. When the temperature rises, the bulb fluid expands via a capillary tube to an expandable diaphragm within
the remote thermostat set point. The thermostats are compact and have ceramic bodies. Accessories include knobs, dials, bezels, plates, screws, compression fittings, reducer bushings and insulation
sleeves.
