CAP-100-320

Hot Capillary Thermostat

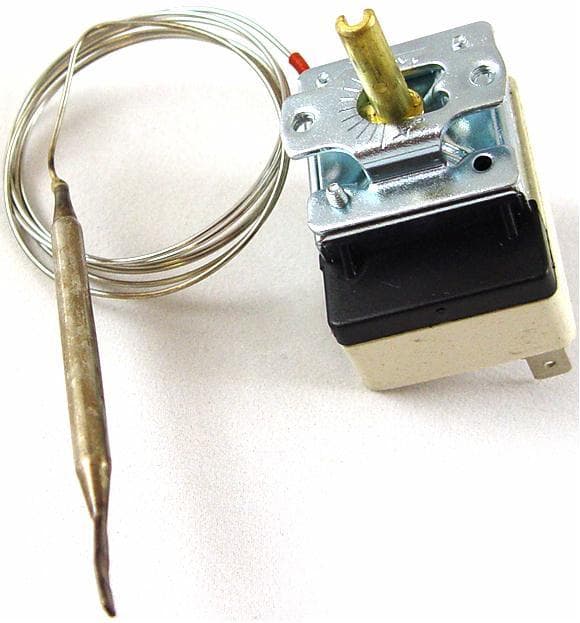

Bulb and capillary thermostat, adjustable 100-320°, 5mm x 80mm bulb (.197 x 3.15"), 980mm (38.59") SS capillary, SPST, 28mm bracket</p>

Request a Quote Find a Distributor

Description Specifications Resources Additional Accessory Options

Description

Bulb and capillary thermostat, adjustable 100-320°, 5mm x 80mm bulb (.197 x 3.15"), 980mm (38.59") SS capillary, SPST, 28mm bracket

Specifications

Product Series	CAP
Type	Adjustable, Automatic Reset
Hot Control	Auto Reset
Function	Open On Rise (Normally Closed)
Switch	SPST
Temperature	100°F to 320°F °5.8°F (40°C to 160°C °6°C)
Differential	10.8°F °5.4°F(6°C °3°C)
Bulb Diameter	.197" (5mm)
Bulb Length	3.15" (80mm)
Bulb & Capillary Material	Stainless Steel
Capillary Length	38" (970mm)
Accessories	n/a
Mounting/Sensing	Air & Immersion
Electrical Rating	120/240VAC, 20 Amps, Resistive, 100,000 Cycles 120VAC, 5 Amps, Inductive, 100,000 Cycles 240VAC, 2.9 Amps, Inductive, 100,000 Cycles 1/4 Horsepower, 100,000 Cycles 125VA (pilot duty), 100,000 Cycles ENEC-16(5)A/250V
Approvals	UL, C-UL, ENEC, RoHS UL File No E168164, XAPX2, XAPX8

Additional Accessory Options

Selco's appliance knobs are high-quality knobs used on our remote capillary thermostats for reliable, precise control and a clean, modern look. They are functional, and built to last — offering effortless control that complements your appliance design.
