2901A-XXXX-XXXX

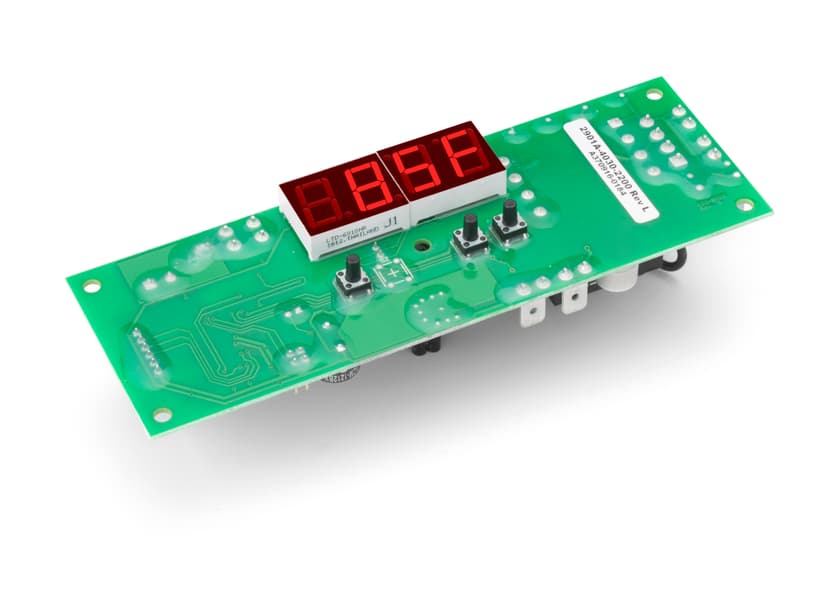

2901A Timer & Temperature Controller
Timer and temperature control with support for thermocouples. 115/230VAC Power Supply, 12VDC output for SSR, 4-digit display and more. UL Approved - E230832
Description
Timer and temperature control with support for thermocouples. 115/230VAC Power Supply, 12VDC output for SSR, 4-digit display and more UL Approved - E230832
Specifications
| Product Series | Standard |
|---|---|
| Controller Type | Open Board |
| Features | User interface integrated. Support for Thermocouple sensor K or J. Solid state relay output |
| Applications | Ovens, Cooking equipment |
| Dimensions | 6.2"L X 2.1"W |
| Operating Temperature | 0°F to 158°F |
| Input Sensors/Switches | One Thermocouple input: Thermocouple J - 200°F to 450°F ±5 °F, Thermocouple K - 200°F to 450°F ±1.8 °F, Thermocouple K - 40°F to 900°F TBD Two NTC Thermistor inputsOne External switch input. One External switch input |
| Input Power | 115VAC/230VAC factory set |
| Outputs | One 12VDC SSR Buzzer of 90dB |
| User Interface | Up to 4 Push buttons 0.56-inch four digit LED display |
| Approvals | UL XAPX2 E230832; CAN/CSA XAPX8 E230832 |
