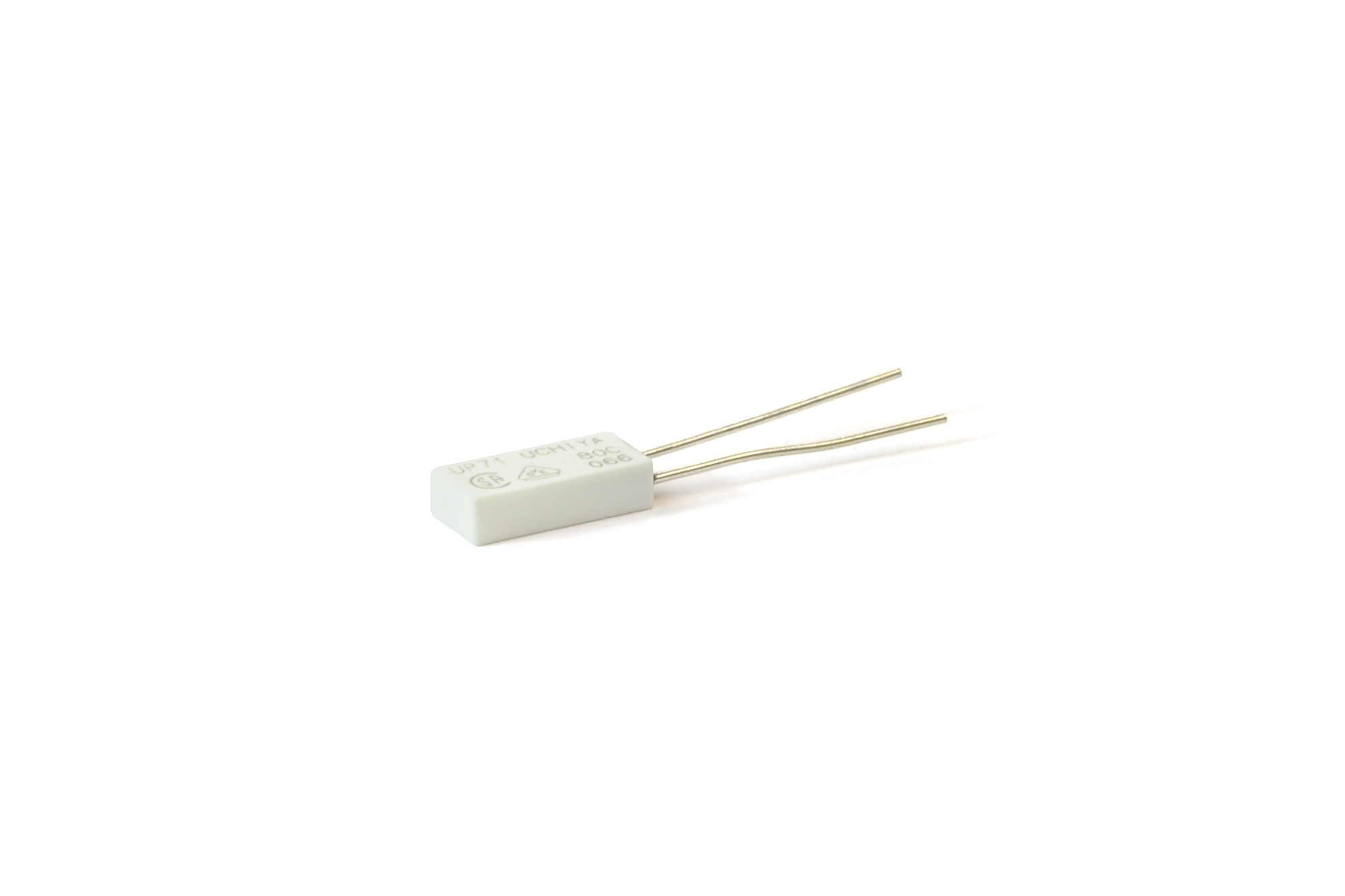

Thermal Protector - Open on Rise: UP7 Series

Item # UP7 Series

Thermal Protector - Open on Rise
Request a Quote
Documents
Specifications

Series:

*Please determine setpoint temperature required in 5ºC increments from 60ºC to 140ºC

UP71-XXXC

Type:

Automatic Reset

Function:

Open On Rise (Normally Closed)

Mounting/Sensing:

Air

Open/Close On Rise:

Open (Normally Closed)

Welding Terminals:

2

Welding Terminals:

Please contact Selco for quotation and further assistance. UOM

Temp Range:

60 to 150ºC (140 to 302ºF)

Temperature Tolerance:

±5C (±9ºF)

Differential:

50 ±25ºC (30 ±15ºF)

Contact Resistance:

≤50 mΩ (initial value)

Features:

  • Low cost
  • Durable plastic case
  • Smallest motor protector approved by UL

Contact System:

UP7, UP71, and UP72 Models – Open on-rise (normally closed) Silver contacts

  Description

Without lead wires, 2 welding terminals

Approvals

EN60730-2-2 UP7 Model Thermal Motor Protector
  250VAC, 302ºF maximum (150ºC maximum)
  File No. 8921.00-4510-0026
EN60730-2-9 UP7 Model Thermal Cut-Out
  250VAC, 2.5 Amps, Resistive, 10,000 Cycles
  250VAC, 1.6 Amps, Inductive, 10,000 Cycles
  302ºF maximum (150ºC maximum)
  File No. 8921.00-4510-0027
UL2111 Motor Protector
UP71 and UP72 Models 125V/250VAC, 1/2HP maximum
  302ºF maximum (150ºC maximum)
  File No. E52703
  Std. C22.2, No. 77 - Motor Protector
  125V/250VAC, 1/2HP maximum
  302ºF maximum (150ºC maximum)
  File No. E52073
CSA Std. C22.2, No. 77 - Motor Protector
UP71 and UP72 Models 125V/250VAC, 3.75FLA
  File No. LR35080
EN60730-2-2 Thermal Motor Protector
UP71 and UP72 Models 250VAC, 302ºF maximum (150ºC maximum)
  File No. 8921.00-4510-0026
EN60730-2-9 Thermal Cut-Out
UP71 and UP72 Models 250VAC, 2.5 Amps, Resistive, 10,000 Cycles
  250VAC, 1.6 Amps, Inductive, 10,000 Cycles
  302ºF maximum (150ºC maximum)
  File No. 8921.00-4510-0027
  RoHS Compliant
