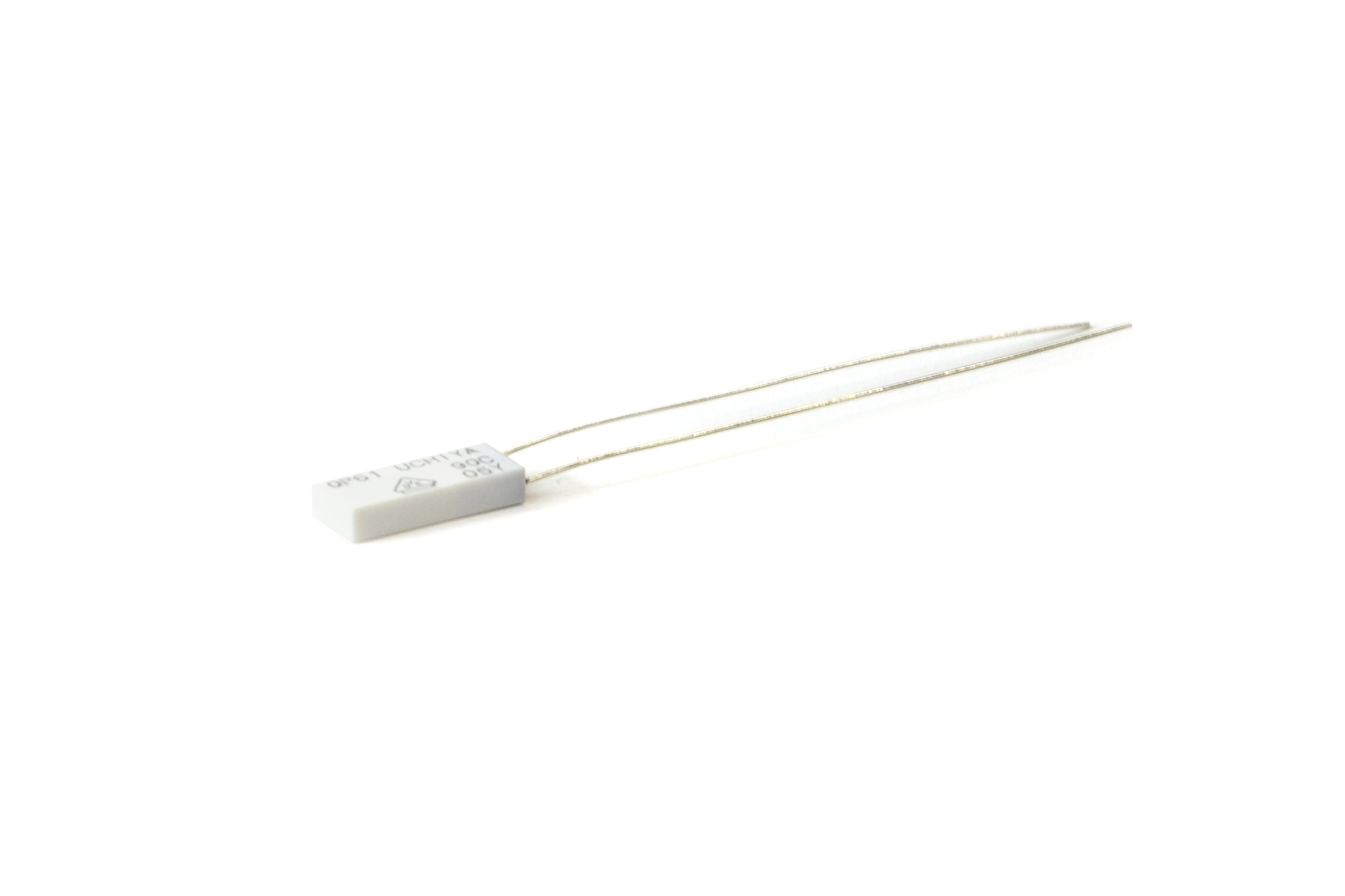

Thermal Protector - Close on Rise: OP6 Series

Item # OP6 Series

Thermal Protector - Close on Rise
Specifications

Series:

*Please determine setpoint temperature required in 5ºC increments from 60ºC to 140ºC.

OP6-XXXC

Type:

Automatic Reset

Function:

Close On Rise (Normally Open)

Mounting/Sensing:

Air

Open/Close On Rise:

Close (Normally Open)

Welding Terminals:

2

Temp Range:

140 to 284

Welding Terminals:

Please contact Selco for quotation and further assistance. UOM

Temp Range:

60 to 140

Temperature Tolerance:

±9

Temperature Tolerance:

±5

Differential:

50 ±25

Differential:

30 ±15

Contact Resistance:

≤50 mΩ (initial value)

Features:

  • Low cost
  • PBT enclosure
  • Snap-action bimetal technology

Contact System:

OP6, OP61, and OP62 Models – Close on-rise (normally open) Silver contacts

OP6#G – PCS (Platinum/Gold/Silver Alloy) cross-bar contacts for micro electric load of electronic applications



Description

Without leads, 2 welding terminals

Approvals

UL873 Regulating
OP6, OP61 and OP62 Models 125VAC, 4 Amps, Resistive, 6,000 Cycles
  284ºF maximum (140ºC maximum)
  File No. E50124
CSA Std. C22.2, No. 24 - Regulating (c-UL)
OP6, OP61 and OP62 Models 125VAC, 4 Amps, Resistive, 6,000 Cycles
  284ºF maximum (140ºC maximum)
  File No. E50124)
EN60730-2-2 Thermal Motor Protector
OP6, OP61 and OP62 Models 250VAC, 284ºF maximum (140ºC maximum)
  File No. 8921.00-4510-0026
EN60730-2-9 Thermal Cut-Out
OP6, OP61 and OP62 Models 250VAC, 2.5 Amps, Resistive, 10,000 Cycles
  250VAC, 1.6 Amps, Inductive, 10,000 Cycles
  284ºF maximum (140ºC maximum)
  File No. 8921.00-4510-0027
EN60730-2-9 Thermal Cut-Out
OP61G and OP62G Models 250VAC, 0.5 Amps, Resistive, 10,000 Cycles
  284ºF maximum (140ºC maximum)
  File No. 8921.00-4510-0027
  RoHS Compliant
