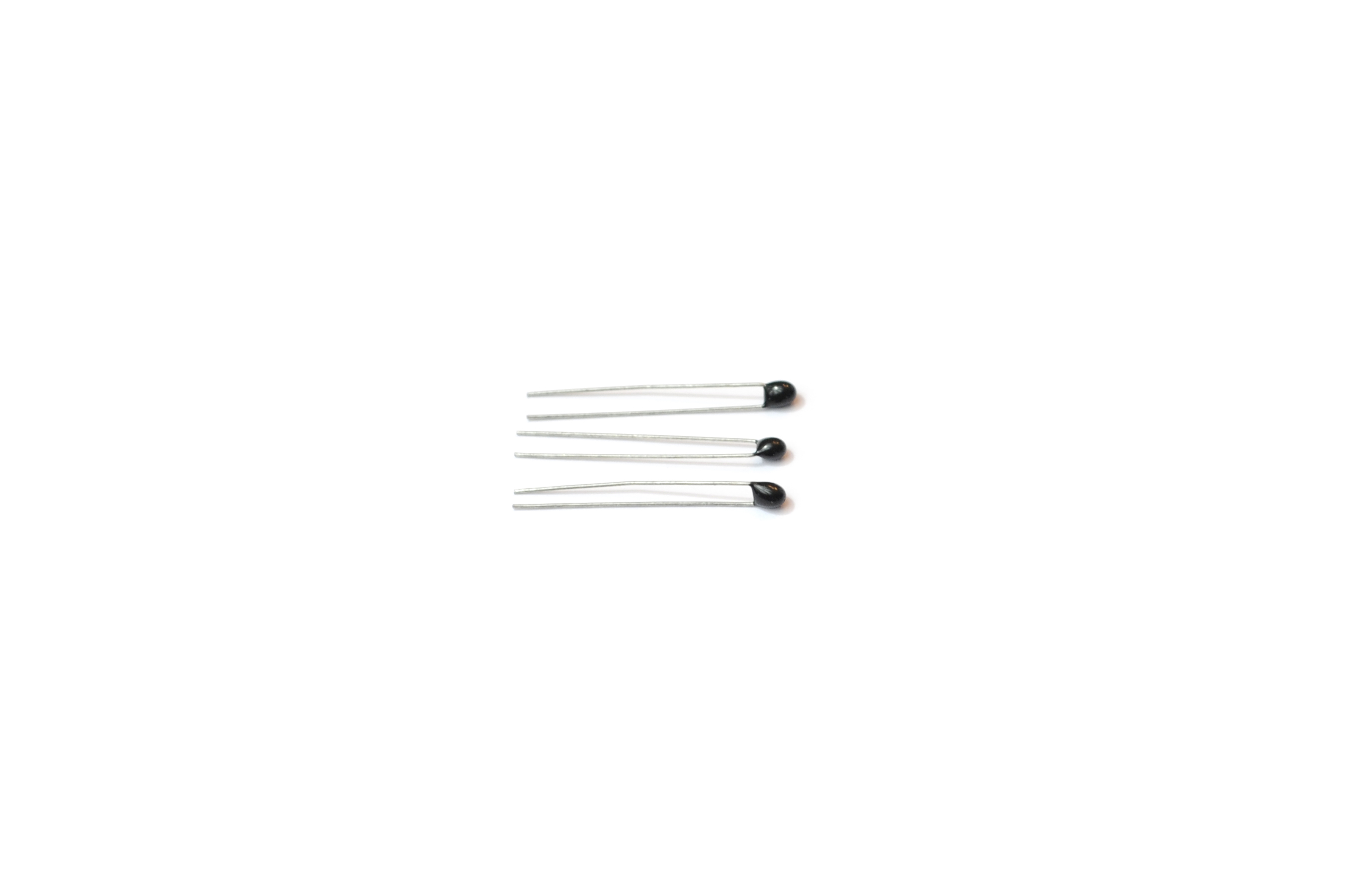

HT Series: Discrete Thermistor with long, stiff leads

Item # Discrete Thermistor with long, stiff leads

HT Series
Specifications

Custom Thermistors:

For Custom HT Series Thermistors - contact Selco

Resistance at 25ºC:

10K Ohms - 100K Ohms

Beta:

3435K, 3975K, 4262K (25ºC/85ºC)

Tolerance at 25ºC:

±1%, ±3%, ±5%

Below are some example part numbers with application specific probe housing, lead wire details, overall length, etc. These assemblies are typically RoHS compliant.

HT-A005K-1
    NTC thermistor, 5K Ohm base resistance at 25°C, Beta of 3977K (25/85), tolerance of  ±1.0% at 25°C, 0.157” x 0.157” epoxy encapsulated thermistor, with two un-insulated 0.019” x 1.023” tinned copper leads,  with an overall length of 1.18”.

HT-C020K-3
    NTC thermistor, 20K Ohm base resistance at 25°C, Beta of 3695K (25/85), tolerance of  ±3.0% at 25°C, 0.157” x 0.157” epoxy encapsulated thermistor, with two un-insulated 0.019” x 1.023” tinned copper leads,  with an overall length of 1.18”.

For more customization options, please fill out our Custom Design Assistance form or contact us today!
