Type:
Hot Control - Manual Reset - High Current
Function:
Open On Rise (Normally Closed)
Switch:
SPST
Set Point:
Manual reset
Temp Range:
104F to 752F (40C to 400C)
Differential:
n/a
Bulb Diameter:
Specify
Bulb Material:
Copper or Stainless Steel
Capillary Length:
Specify
Accessories:
Mounting stuffing boxes, compression fittings M9, M10, 3/8", 1/4", 1/8" & reducer bushings
Electrical Rating:
120/250VAC, 30Amps, Resistive, 100,000 cycles
250VAC,2.9FLA/30LRA, Inductive, 100,000 cycles
Approvals:
UL, C-UL, ENEC, ROHS
UL file no. E168164, XAPX2, XAPX8

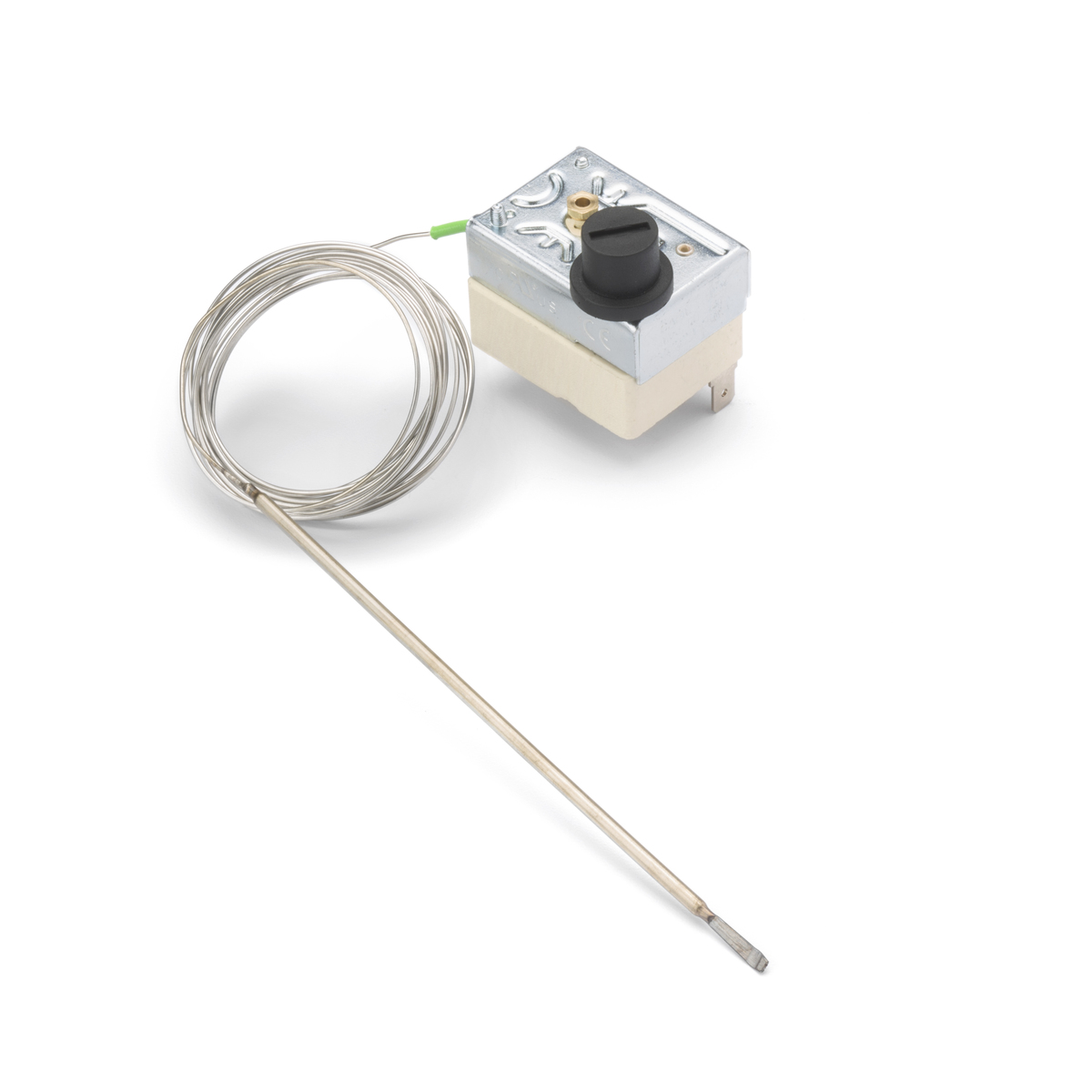

The bulb and capillary thermostats are adjustable or fixed setting, automatic reset thermostats. When the temperature rises, the bulb fluid expands via a capillary tube to an expandable diaphragm within
the remote thermostat set point. The thermostats are compact and have ceramic bodies. Accessories include knobs, dials, bezels, plates, screws, compression fittings, reducer bushings and insulation
sleeves.
