Thermal Protector - Open on Rise

Item # UP61 Series

Thermal Protector - Open on Rise
Specifications

Open/Close On Rise:

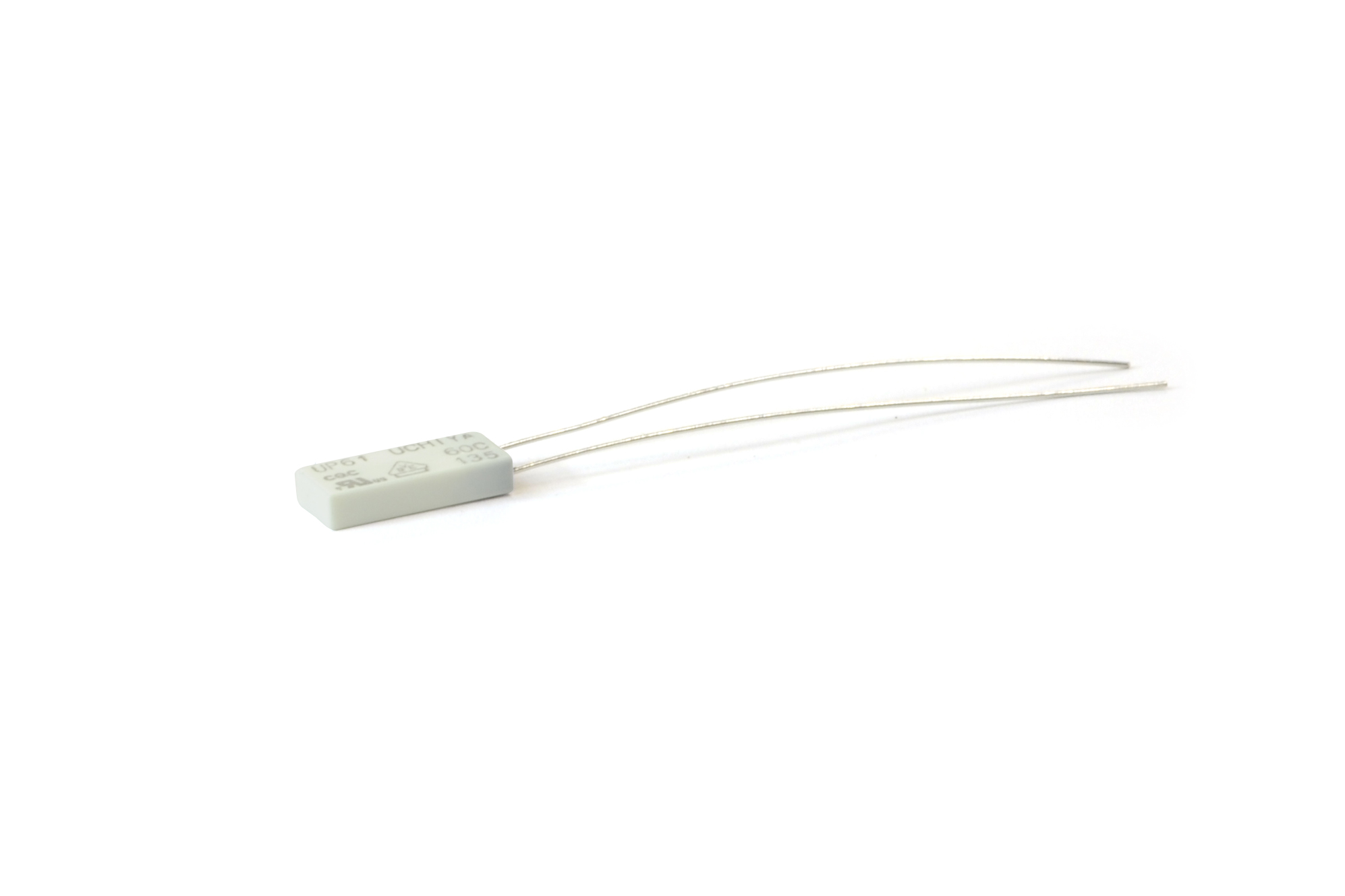

The UP6 Series is the smallest enclosure Thermal Protector. The compact size and unique design allows it to fit into tight spaces and to be mounted on PCB boards. The PBT material enclosure offers a Thermally Conductive and Electrically isolated case.

Temperature Range:

140 to 284

Temperature Range:

60 to 140

Temperature Tolerance:

±9

Temperature Tolerance:

±5

Differential:

50 ±25

Differential:

30 ±15

Contact Resistance:

≤50 mΩ (initial value)

Features:

  • PBT enclosure
  • Not current sensitive
  • Suitable for PCB mounting

Series:

*Please determine setpoint temperature required in 5ºC increments from 60ºC to 140ºC

UP61-XXXC

Contact System:

UP6, UP61, and UP62 Models – Open on-rise (normally closed) Silver contacts

UP6#G – PCS (Platinum/Gold/Silver Alloy) cross-bar contacts for micro electric load of electronic applications

Description

Uninsulated solid wires

Approvals

UL873 Regulating
UP6, UP61 and UP62 Models 125VAC, 4 Amps, Resistive, 6,000 Cycles
284ºF maximum (140ºC maximum)
File No. E50124
CSA C22.2, No. 24 (c-UL) - Regulating
UP6, UP61 and UP62 Models 125VAC, 4 Amps, Resistive, 6,000 Cycles
284ºF maximum (140ºC maximum)
File No. E50124
EN60730-2-2 Thermal Motor Protector
UP6, UP61 and UP62 Models 250VAC, 284ºF maximum (140ºC maximum)
File No. 8921.00-4510-0026
EN60730-2-9 Thermal Cut-Out
UP6, UP61 and UP62 Models 250VAC, 2.5 Amps, Resistive, 10,000 Cycles
250VAC, 1.6 Amps, Inductive, 10,000 Cycles
284ºF maximum (140ºC maximum)
Thermal Cut-Out
EN60730-2-9 250VAC, 0.5 Amps, Resistive, 10,000 Cycles
UP61G and UP62G Models 284ºF maximum (140ºC maximum)
File No. 8921.00-4510-0027
RoHS Compliant
