SE-L250M

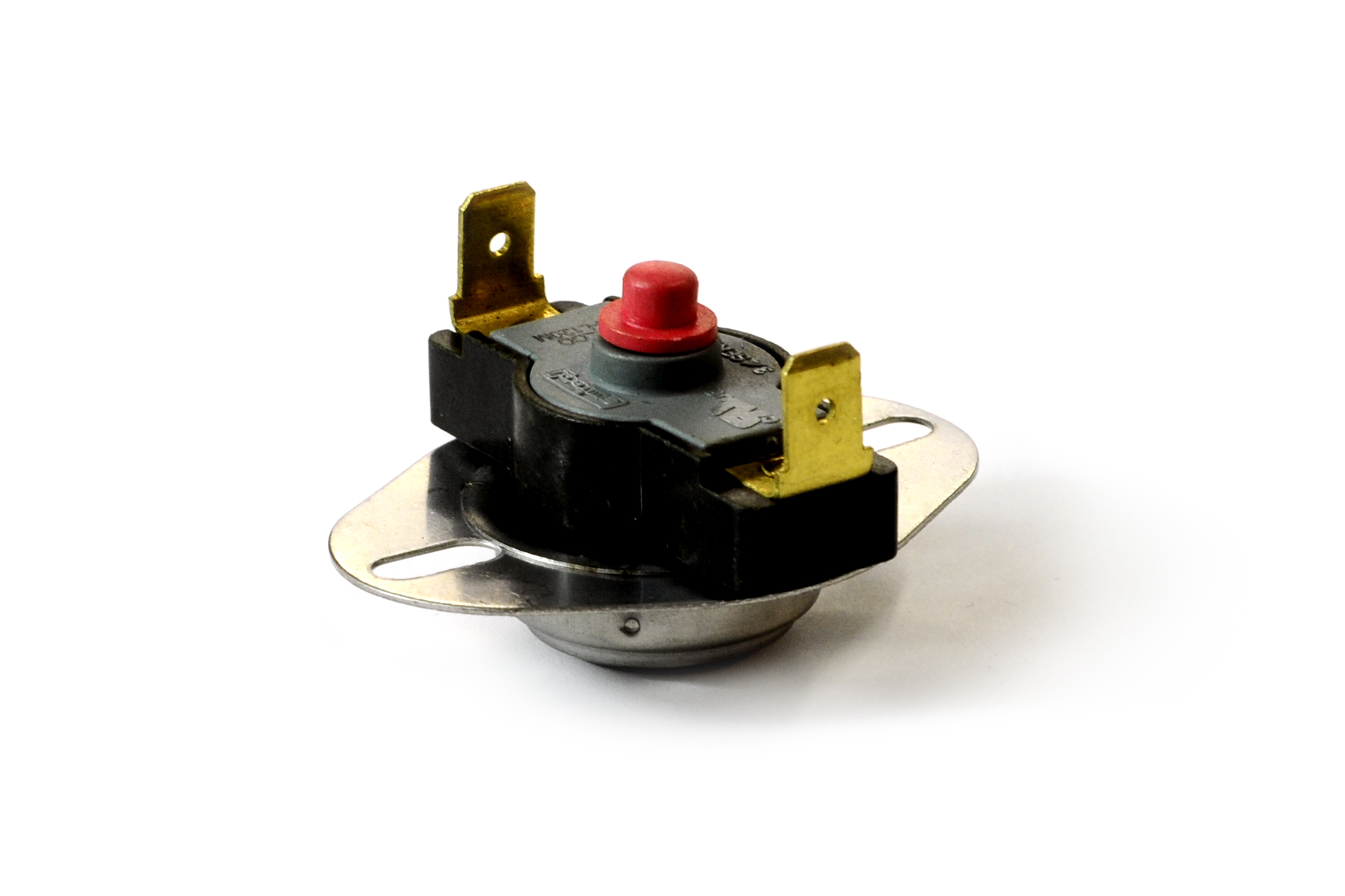

3/4” Disc Thermostat - Manual Reset

3/4" Disc Thermostat, Manual reset, Opens at 250°F ±14°F, Manual reset, .250" vertical quick connect terminals, Air mount bracket

Description

3/4" Disc Thermostat, Manual reset, Opens at 250°F ±14°F, Manual reset, .250" vertical quick connect terminals, Air mount bracket

Specifications

Series

SE

Type

Manual Reset

Function

Open On Rise (Normally Closed)

Open Temperature

250°F ± 14°F

Mounting/Sensing

Air

Electrical Rating

120VAC, 240VAC, 25 Amps, 60Hz, Resistive
120VAC, 10FLA, 60LRA, 60Hz, Inductive
240VAC, 5FLA, 30LRA, 60Hz, Inductive
100,000 Cycles

Environmental

32°F-350°F (0°C-176.6°C)

Insulation Resistance

100 MΩ (with a 500 VDC megger)

Circuit Resistance

50mΩ or less

Dielectric Strength

1.500 VAC/1 minute

Approvals

UL (E145478, XAPX2) c-UL (E145478, XAPX8)
